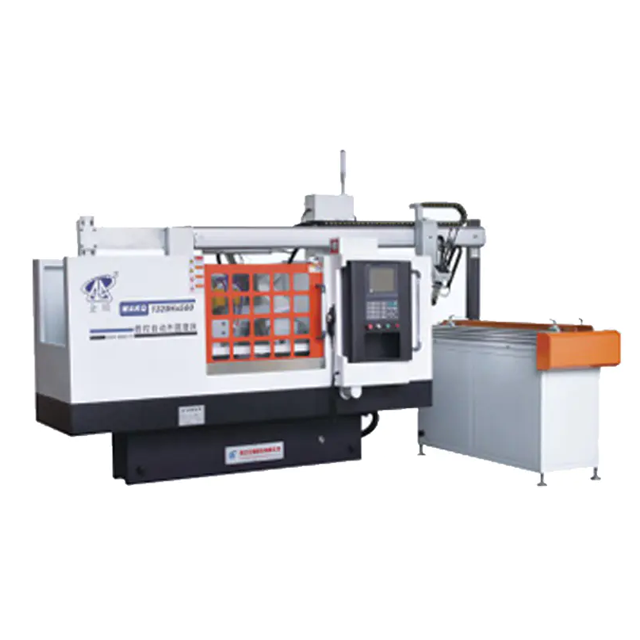

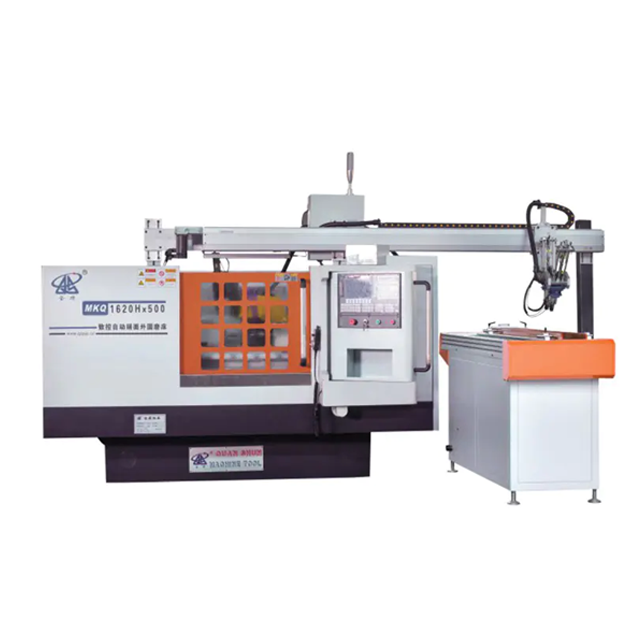

Automatic loading and unloading CNC cylindrical grinder is suitable for grinding large quantities of parts. One person can easily operate more than 5 machines, with high cost performance.
The electrical system adopts SYNTEC system control, intelligent touch screen and keyboard screen.
Human-machine dialogue operation, parameter table and screen programming.
Make the operation simpler and more convenient.
The spindle box motor adopts servo motor, and the workpiece clamping is a self-developed floating device with three-point contact.
The system adopts a dual-channel control path, which can grind products and robot transport products at the same time, improving product cycle time.
The automatic manipulator of the machine tool can enter and exit from the left and right sides of the machine tool, making it more flexible and convenient for users to place the machine tool. And the machine tool can combine several machines together to form an automatic production line, greatly improving production efficiency and saving valuable production space.
Description | unit | MKQ1332Bx500 | MAKQ1320Hx500 | MKQ1320Hx500 | |
Dia to be ground | (mm) | Φ8-Φ320 | Φ8-Φ200 |
| |
Max.length to be guound | (mm) | 400 | 400 | 400 | |
Center heighe | (mm) | 180 | 135 | 135 | |
Max.workpiece weight to be grounnd | (kg) | 5-20 | 5 | 5 | |
Wheel size | (mm) | Φ600x75xΦ305 | Φ500x50xΦ203 | Φ400x50xΦ203 | |
Wheel peripheral speed | (m/s) | 35(Dynamic and static pressure spindle 45m/s) | 38(Dynamic and static pressure spindle 45m/s) | 38(Dynamic and static pressure spindle 45m/s) | |
Total motor power | (kw) | 30 | 22 |
|
