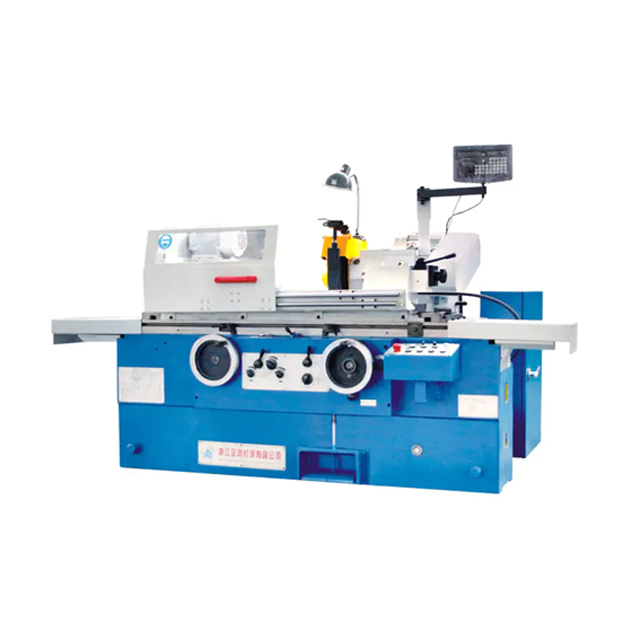

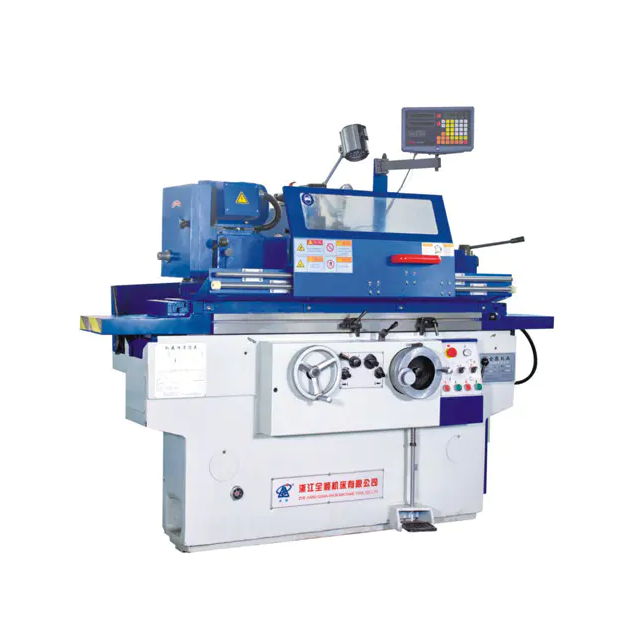

This machine tool absorbs the advantages of the major grinder and improves the cutting grinder. Heavy Duty Ginder, with high cutting precision, high rigidity, and high efficiency. Suitable for grinding cylindrical and conical workpieces.
The workpiece of the machine, the cylindrical grinding wheel, the inner circle of the grinding wheel, the oil pump and the cooling pump by an independent motor drive.
The longitudinal movement of the machine table by the hydraulic continuously variable transmission can also be handwheel drive, table lubrication Orifice Compensated unloading form.
Grinding wheel frame transverse feeding fine tuning can be made by the hydraulic feed and fast and automatic cycle, A feed hand wheel is also available to achieve the thickness.
Machine moving parts with electrical, hydraulic and the operation is safe and reliable.
Description | unit | M1350Bx1500/2000/3000/4000 |
Max.dia.to be ground | mm | 500 |
Max. length to be ground | mm | 1500,2000,3000,4000 |
Max. workpiece weight | kg | 1000 |
Wheel size(O.D.xWxl.D) | mm | Φ750x75xΦ305 |
Center height | m m | 270 |
Wheel peripheral speed | m/s | 38 |
Total motor power | KW | 20.63 |
Description | Unit | MC1332Bx2000/3000 |
Grinding length | mm | 2000/3000 |
Grinding diameter | mm | Φ8-Φ320 |
Center height | mm | 180 |
Max. workpiece weight | kg | 150 |
Wheel peripheral velocity | m/s | 38 |
External wheel size | mm | Φ600x75xΦ305 |
Total motor power | kw | 14.27 |
Description | Unit | M1332Bx1000/1500/2000/3000 |
Grinding length | mm | 1000/1500/2000/3000 |
Grinding diameter | mm | Φ8-Φ320 |
Center height | mm | 180 |
Max. workpiece weight | kg | 150 |
Wheel peripheral velocity | m/s | 38 |
External wheel size | mm | Φ600x75xΦ305 |
Total motor power | kw | 14.27 |
Description | unit | MA1320Hx500/750 | ||
Grinding diameter | 0.D. with steady-rest min/max | mm | 8/60 | |
without steady-rest min/max | mm | 8/200 | ||
1.D. with steady-rest min/max | mm | |||
without steady-rest min/max | mm | |||
Max.work weight | kg | 50 | ||
Max.grinding length | O.D. | mm | 500/750 | |
1.D. | mm | |||
Center height | mm | 135 | ||
Wheel dimensions(O.D.xWxl.D) | mm | Max.Φ400x50xΦ203 | Min.Φ280x50xΦ203 | |
Peripheral speed of grinding wheel | m/s | 38 | ||
Total motor power | kw | 5.43 | ||
Description | unit | M1320Hx500/800 | ||
Grinding diameter | 0.D. with steady-rest min/max | mm | 8/60 | |
without steady-rest min/max | mm | 8/200 | ||
1.D. with steady-rest min/max | mm | |||
without steady-rest min/max | mm | |||
Max.work weight | kg | 50 | ||
Max.grinding length | O.D. | mm | 500/800 | |
1.D. | mm | |||
Center height | mm | 135 | ||
Wheel dimensions(O.D.xWxl.D) | mm | Max.Φ400x50xΦ203 | Min.Φ280x50xΦ20 | |
Peripheral speed of grinding wheel | m/s | 38 | ||
Total motor power | kw | 5.625 | ||
