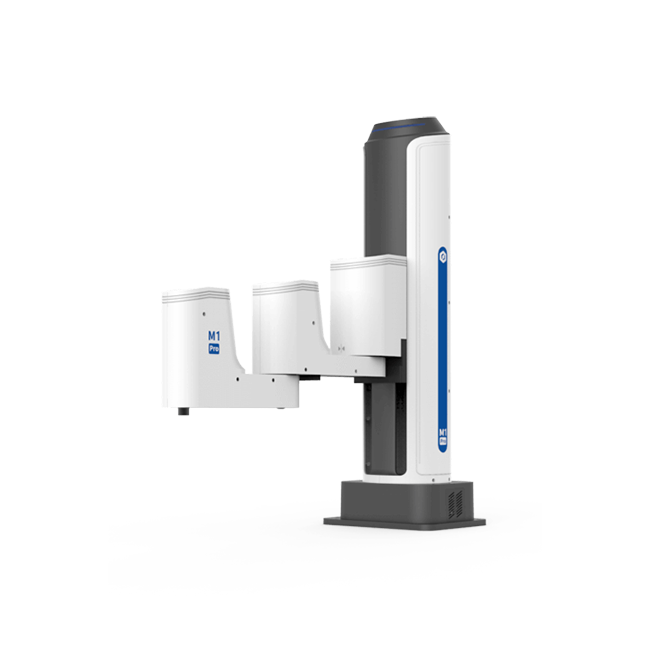

An industrial-grade all-in-one SCARA robot featuring ±0.02mm repeatability and high-speed motion for precision 3C and packaging tasks.
M1 Pro
DOBOT
| Quantity: | |
|---|---|
The M1 Pro is an industrial-grade all-in-one SCARA robot designed for light manufacturing. With its integrated control box, collision detection, and ±0.02mm repeatability, it delivers outstanding precision and speed for small and medium-sized factories.
[All-in-One Design] — Integrated controller eliminates external wiring and control cabinets. Compact and portable, the M1 Pro saves valuable floor space and enables plug-and-play deployment.
[±0.02mm Precision] — Industry-leading repeatability of ±0.02mm ensures consistent, high-quality results across high-speed production lines.
[Integrated Safety] — Collision detection enables safe human-machine collaboration. The forearm is 40% narrower than traditional industrial robotic arms to reduce accidental impact.
[Rapid Setup] — Simplified calibration with graphical and script programming. Supports wired and wireless connections to PCs, tablets, and smartphones for flexible operation.
[Optimized Performance] — Encoder interface supports dynamic grabbing and tracking, multithread and on-the-fly I/O controls to reduce motion cycle time.
Parameter | Specification |
|---|---|
Model | DOBOT M1 Pro |
Weight | 15.7 kg |
Maximum Payload | 1.5 kg |
Working Radius | 400 mm |
Repeatability | ±0.02 mm |
Rated Voltage | 100–240V AC, 50/60 Hz |
Axes | 4 (J1, J2, J3, J4) |
J1 Range | ±85° |
J2 Range | ±130° |
J3 Stroke (Z-axis) | 5 mm ~ 245 mm |
J4 Range | ±360° |
J1/J2 Max Speed | 180°/s |
J3 Max Speed | 1000 mm/s |
J4 Max Speed | 1000°/s |
IP Rating | IP20 |
Communication Interfaces | TCP/IP, Modbus TCP, Modbus RTU |
3C Electronic Assembly — High-precision assembly of smartphones, tablets, and consumer electronics components.
Soldering — Consistent, repeatable soldering for PCB and electronic component manufacturing.
Dispensing & Gluing — Accurate adhesive dispensing for sealing, bonding, and potting applications.
Sorting & Pick-and-Place — Fast sorting and material handling in packaging and logistics lines.
Quality Inspection — Automated visual inspection and testing for quality assurance.
Loading & Unloading — Machine tending for CNC, injection molding, and other production equipment.
