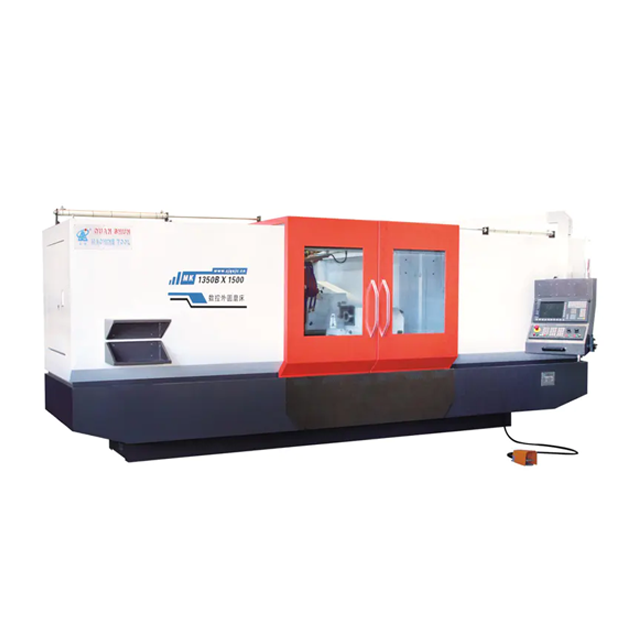

● The M1350B (MK1450B) cylindrical grinding machine is specially designed for grinding cylindrical or tapered surfaces of rotary parts, featuring strong adaptability for single-piece and small-batch production.
● The table traverse adopts hydraulic drive with infinitely variable speeds and can also be operated manually.
● The grinding wheel spindle is supported by three tilting segmented bearing shoes.
● The system adopts a dual-channel control scheme to support synchronous operation of grinding and robotic handling, effectively shortening product cycle times and improving overall processing efficiency.
Description | unit | MK1450B |
Max.dia.to be ground | mm | 500/200 |
Max.length to be ground | mm | 1500,2000,3000,4000/320 |
Max. workpiece weight | kg | 1000 |
Wheel size(O.D.xWxl. D) | mm | Φ500x75xΦ305 |
Center height | mm | 270 |
Wheel peripheral speed | m/s | 35 |
Total motor power | KW | 14.08 |
