● This series of machines is suitable for high-volume grinding of cylindrical shaft parts with shoulders and end faces. It can form multiple steps and perform wide end-face grinding. Featuring a high degree of automation, the equipment allows one operator to manage multiple machines simultaneously.
● The machine is equipped with the SYNTEC CNC system; other control systems are available for customized configuration upon request.
● The wheel head adopts a high-speed hybrid spindle assembly with excellent rotational precision and high rigidity, and supports the installation of wide grinding wheels.
● It adopts a bevel grinding head with an oblique feed wheel frame structure for flexible and stable grinding processing.
● The machine is equipped with an independent electrical box, oil tank and filtration tank for stable operation and convenient maintenance.
● The grinding wheel motor is equipped with an AC frequency conversion device, which basically realizes constant linear speed grinding and ensures consistent grinding quality.
Description | unit | MK1632Bx500 | MK1632Bx1000 | MK1632Bx1500 | MK1632Bx2000 |
Dia to be ground | mm | Φ8~Φ320 | Φ8~Φ320 | Φ8~Φ320 | Φ8~Φ320 |
Max. length to be ground | mm | 500 | 1000 | 1500 | 2000 |
Center height | mm | 180 | 180 | 180 | 180 |
Max. workpiece weight | kg | 150 | 150 | 150 | 150 |
Wheel peripheral velocity | m/s | 45 | 45 | 45 | 45 |
Externa wheel size | mm | Φ600x75xΦ305 | Φ600x75xΦ305 | Φ600x75xΦ305 | Φ600x75xΦ305 |
Total motor power | kw | 22 | 22 | 22 | 22 |
Description | unit | MKZ1632Bx500 | MKZ1632Bx1000 | MKZ1632Bx1500 | MKZ1632Bx2000 |
Dia to be ground | mm | Φ8~Φ320 | Φ8~Φ320 | Φ8~Φ320 | Φ8~Φ320 |
Max. length to be ground | mm | 500 | 1000 | 1500 | 2000 |
Center height | mm | 180 | 180 | 180 | 180 |
Max. workpiece weight | kg | 150 | 150 | 150 | 150 |
Wheel peripheral velocity | m/s | 45 | 45 | 45 | 45 |
Externa wheel size | mm | Φ600x75xΦ305 | Φ600x75xΦ305 | Φ600x75xΦ305 | Φ600x75xΦ305 |
Total motor power | kw | 22 | 22 | 22 | 22 |
Description | unit | MK1632Cx500 | MK1632Cx1000 |
Dia to be ground | mm | Φ8~Φ320 | Φ8~Φ320 |
Max.length to be ground | mm | 500 | 1000 |
Center height | mm | 180 | 180 |
Max.workpiece weight | kg | 150 | 150 |
Wheel peripheral velocity | m/s | 45 | 45 |
External wheel size | mm | Φ600x75xΦ305 | Φ600x75xΦ305 |
Total motor power | kw | 22 | 22 |

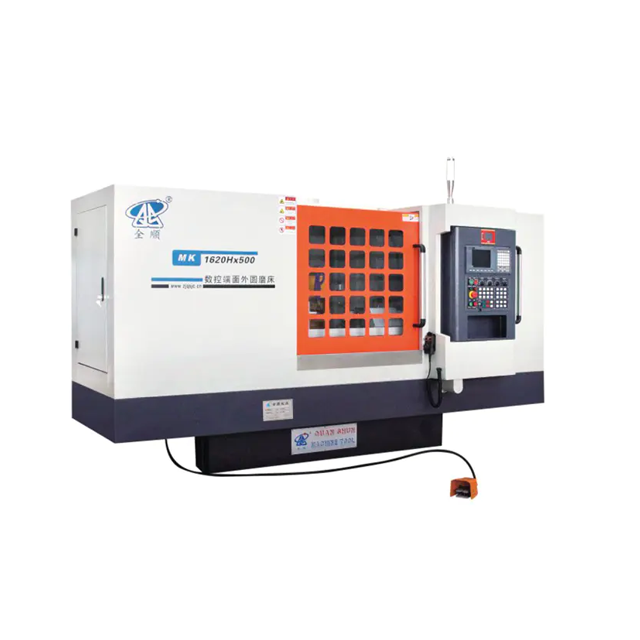

Description | unit | MK1620Hx500 | MK1620Hx750 |
Dia to be ground | mm | Φ8~Φ200 | Φ8~Φ200 |
Max.length to be guound | mm | 500 | 750 |
Center height | m m | 135 | 135 |
Max. workpiece weight | kg | 50 | 50 |
Wheel peripheral velocity | m/sec | 45 | 45 |
External wheel size | mm | Φ500x50xΦ203 | Φ500x50xΦ203 |
Total motor power | kw | 12 | 12 |

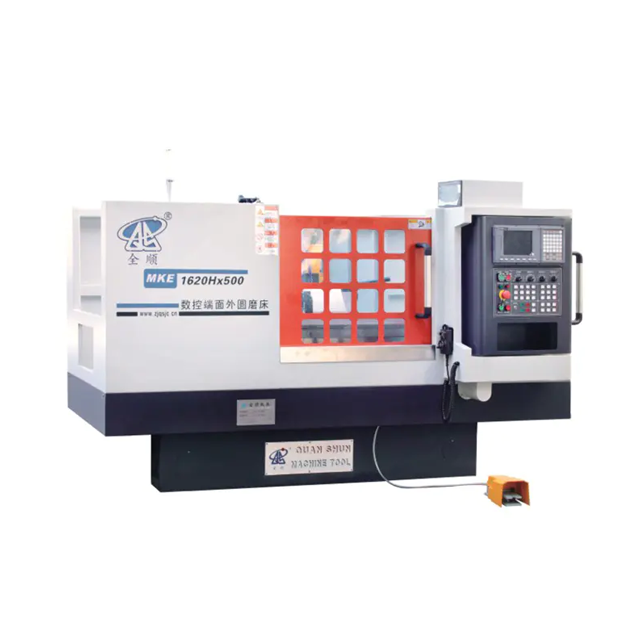

Description | unit | MKE1620Hx500 | MKE1620Hx750 |
Dia to be ground | mm | Φ8~Φ200 | Φ8~Φ200 |
Max.length to be ground | mm | 500 | 750 |
Center height | mm | 135 | 135 |
Max. workpiece weight | kg | 50 | 50 |
Wheel peripheral velocity | m/s | 45 | 45 |
External wheel size | mm | Φ500x50xΦ203 | Φ500x50xΦ203 |
Total motor power | kw | 12 | 12 |
Description | unit | MKZ1620Hx500 | MKZ1620Hx750 |
Dia to be ground | mm | Φ8~Φ200 | Φ8~Φ200 |
Max. length to be ground | mm | 500 | 750 |
Center height | mm | 135 | 135 |
Max. workpiece weight | kg | 50 | 50 |
Wheel peripheral velocity | m/s | 45 | 45 |
External wheel size | mm | Φ500x50xΦ203 | Φ500x50xΦ203 |
Total motor power | kw | 12 | 12 |
